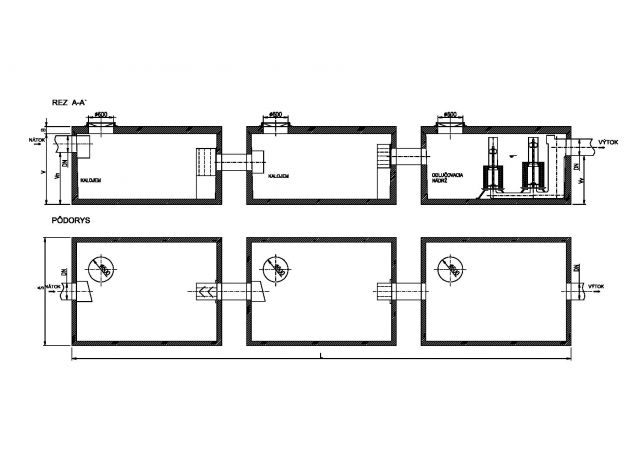

KL 230/3
| Nominal flow (performance) Q | 230 l / s |
| Drained area | 16500 m2 |
| DN | 500 mm |
| Tank capacity | 3 |
| Sludge tank volume | 24 m3 |
| External length L | 12000 mm |
| External Width W | 2600 mm |
| Height H | 1700 mm |
| Ceiling slub thickness | 170 |
| Base height of intake pipe from bottom Hi | 1150 mm |
| Base height of drain pipe from bottom Ho | 1070 mm |
| Heaviest weighing piece | 9 t |
| Výstupná hodnota vyčistenej vody z ORL [mg] | 1 až 5 mg/l NEL |
ORL
Oil-water separator
ORL KL 250 4sII
Oil-water separator ORL KL 235/3
Schmidt hammer shows 45
Inlet rectifier from the sludge tank
First tank is sludge tank ORL 250 4 sII
Reservoir sludge tank
Sludge tank inflow
Sludge tank ORL 250 4 sII
Sludge tank & coatings
Sorption filter is too dirty
Separator KLk5
Loading 4 units ORL KLK
ORL KL in groundwater Beladice - Tekovské Nemce
The plastic separator
Inside the plastic separator
